Description

SPECIFICATIONS



Brand Name: WEGEAR





Compatible Devices: Phones

Data Transmission: No

Display screen: No

GaN: Yes

High-concerned chemical: None

Intelligent Charge: Yes

Max. Output Power: 67W

Model Number: PA3 67W



Output Current: 3A

Output Interface: USB

Output Power: 500-735（include735）

Package: Yes

Power Source: AC&DC

Quick charge: Yes

Type: Universal Charger,Electric,Car Charger,Desktop,Travel,Quick charger,Device with USB Charger,USB

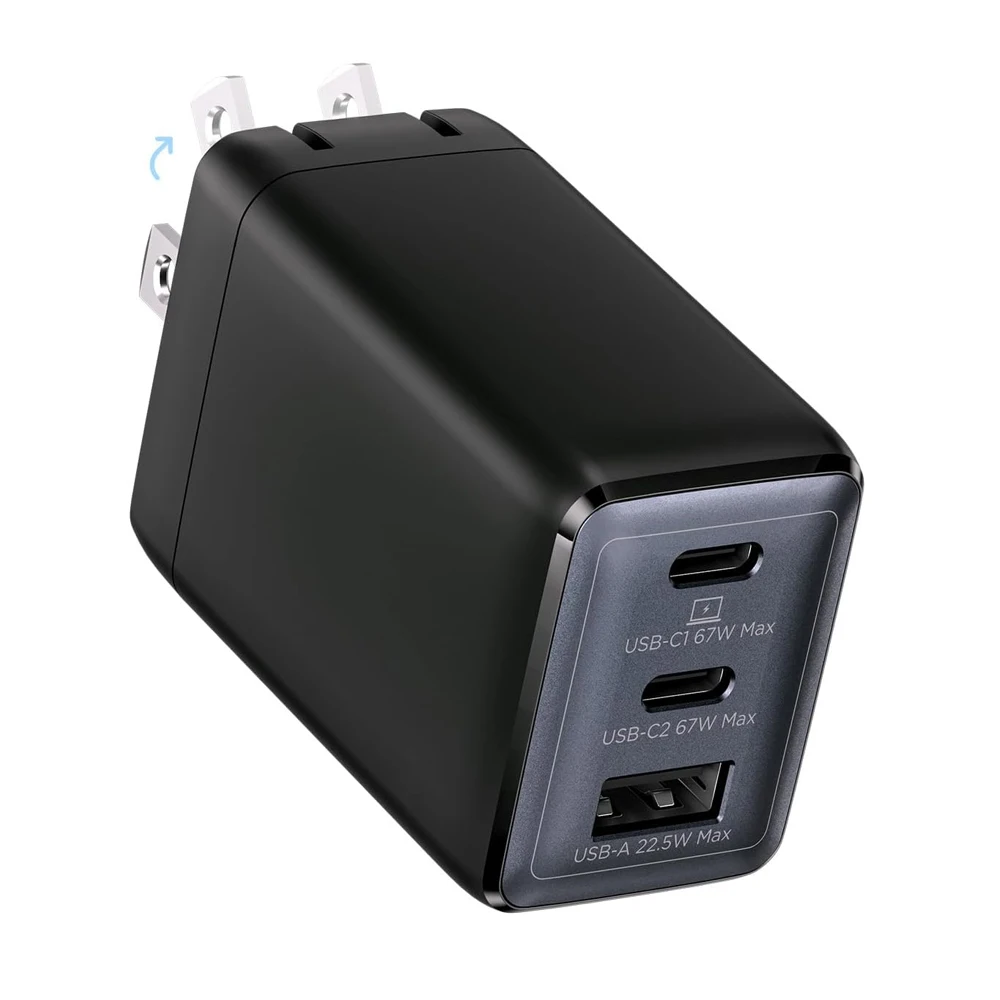

Product Information:

• Model: AC-255MUS

• Color: Black

• Dimensions: 63*38*31mm

• Weight: 105.2g

• Input: 100V-240V~50/60Hz

• Single Port Output:

USB-C1: 5.0V⎓3.0A 15.0W or 9.0V⎓3.0A 27.0W or 15.0V⎓3A 45.0W or 20.0V⎓3.35A 67.0W PPS 3.3-11V5A Max 55W (The PPS with a 45W power reduction is 3.3-11V3A)

USB-C2: 5.0V⎓3.0A 15.0W or 9.0V⎓3.0A 27.0W or 15.0V⎓3A 45.0W or 20.0V⎓3.35A 67.0W PPS 3.3-11V5A Max 55W

USB-A: 5.0V⎓3.0A 15.0W or 9.0V⎓2.0A 18.0W or 12.0V⎓1.5A 18.0W or 10.0V⎓2.25A 22.5W max

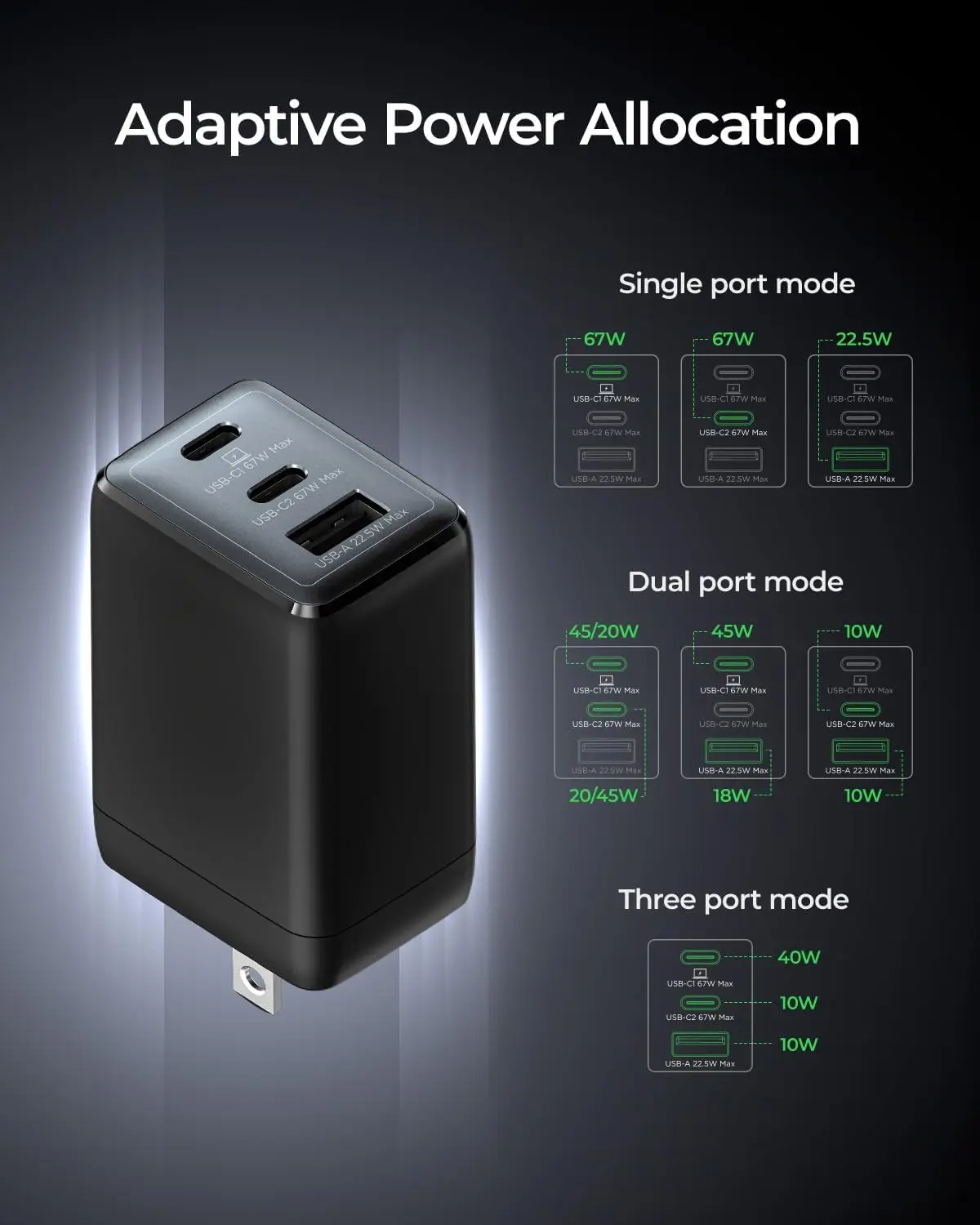

Mixed output

• 2ports output:

USB-C1 + USB-C2: 45W + 20W (20V2.25A PD3.0 / 11V3A PPS + 9V2.22A PD3.0)

USB-C1 + USB-A: 45W+ 18W (20V2.25A PD3.0 / 11V3A PPS + 9V2A QC 18W)

USB-C2 + USB-A: 5V2A+5V2A

*Ambient temperature 25℃, 110V/240V input, 45W+20W full load continuous output for 25-30 minutes triggers the 75℃ over-temperature protection function, then switches to 30W+20W continuous output.

• 3-port output:

USB-C1 + USB-C2 + USB-A: 40W + 10W + 10W – (5V3A, 9V3A, 15V2.67A, 20V2A PD3.0 / 11V3A Max PPS + 5V2A + 5V2A)

*At an ambient temperature of 25℃, with 110V/240V input, the 40W + 10W + 10W full-load continuous output will trigger the 75℃ over-temperature protection function after 25-30 minutes, switching to 30W + 7.5W + 7.5W continuous output.

• Single-port fast charging protocols:

USB-C1: 67W Max Supported protocols (PPS/PD3.0/QC3.0/QC2.0/SCP/FCP/Apple 2.4A/SAMSUNG 2.0A/BC1.2)

USB-C2: 67W Max Supported protocols (PPS/PD3.0/QC3.0/QC2.0/SCP/FCP/Apple 2.4A/SAMSUNG 2.0A/BC1.2)

USB-A: 22.5W Max Supported protocols

(SCP 22.5W/QC3.0/QC2.0/Apple 2.4A/SAMSUNG 2.0A/BC1.2)

✅【100W Hyper-Fast Charging: 】

Connect a single device to get a 100W max charge—that’s enough to power up the 14" MacBook Pro (M3 Pro) to 50% in 30 Minutes. And when you connect three devices simultaneously, power will be distributed efficiently between ports to ensure you get the best charge.

✅【3-in-1 Fast Charger: 】

Featuring 2 USB-C (100W PD) and 1 USB-A (22.5W QC) ports, the wegear wall charger delivers a total output of 100W, enabling fast charging of up to three devices simultaneously with efficient power distribution. Perfect for phones, tablets, and laptops.

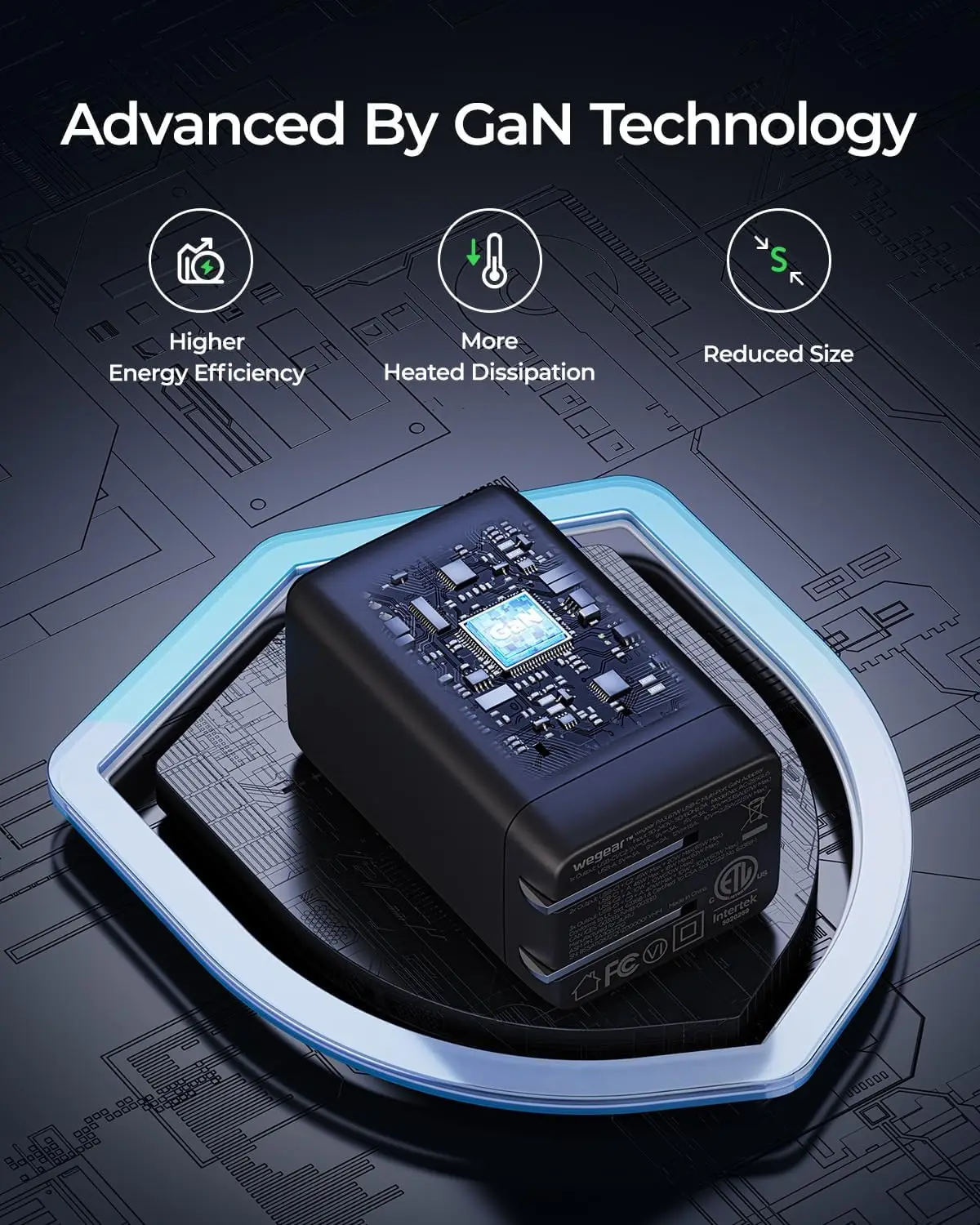

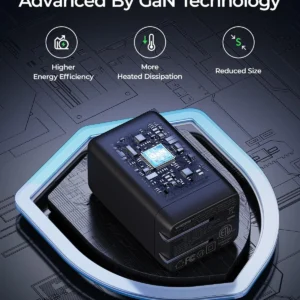

✅【GaN III CoolTech Advantage and Certified Safety: 】

40% cooler than traditional chargers thanks to next-gen Gallium Nitride III and thermal safeguards,stays at 113°F max during 100W output (safe touch-range).

ETL/CSA/UL-certified with high-grade protection Support 100x/sec voltage/current monitoring, Short-circuit/overload auto-shutdown, Flame-retardant casing

✅【Compact & Foldable Design: 】

Benefit by a cutting edge GaN chip, wegear 100W USB C charger is 38% smaller than the original charger and equipped with a foldable plug that makes it easy to carry.

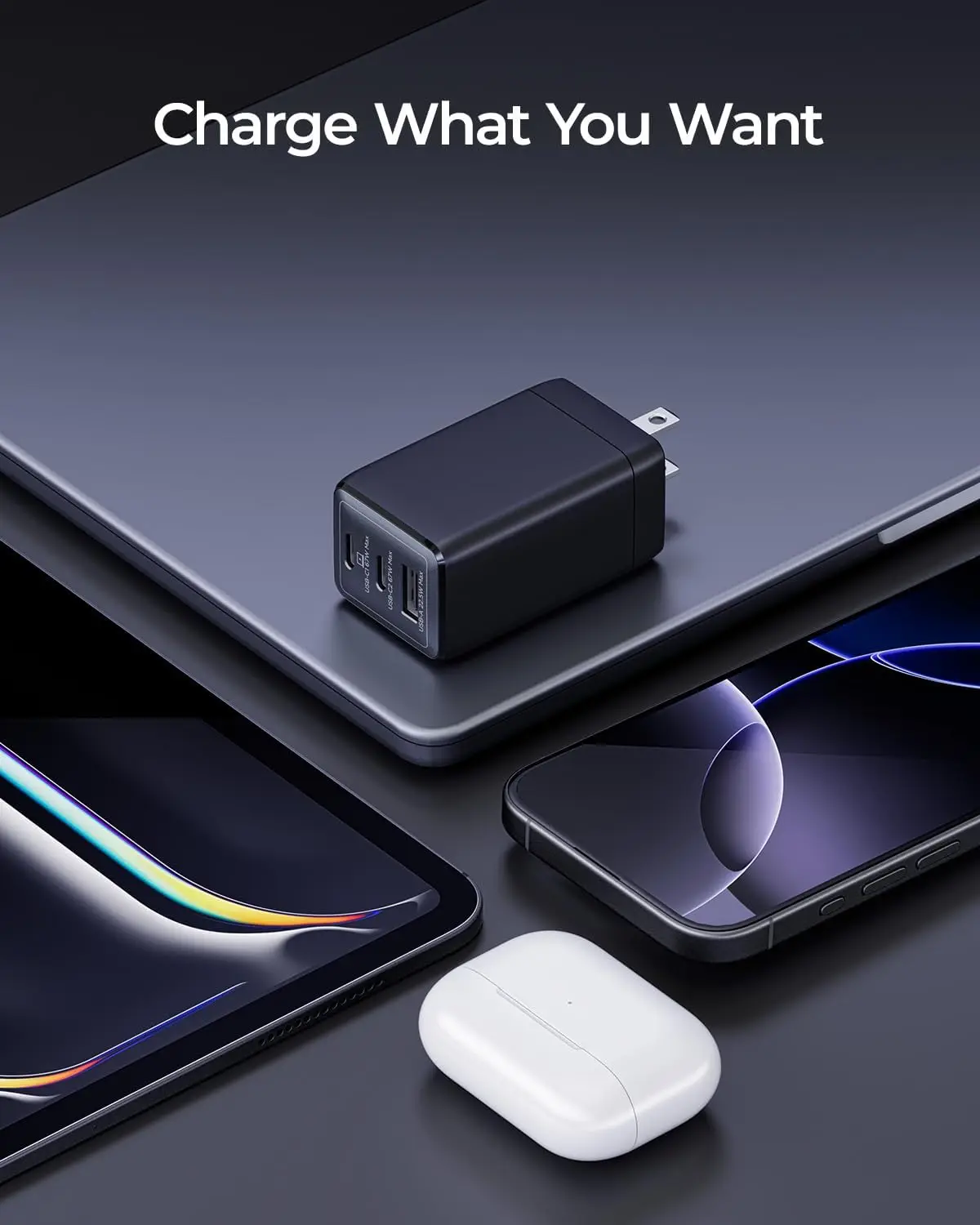

✅【Wide Compatibility: 】

The type c charging block is compatible with Macbook, iPhone 8-16 Series, Galaxy S10-S24 Series, MagSafe, iPad Pro, Google Pixel 7 Pro/ 6a/ 5/ Switch, iPad, Steam Deck and more (USB-C CABLE NOT INCLUDED).
